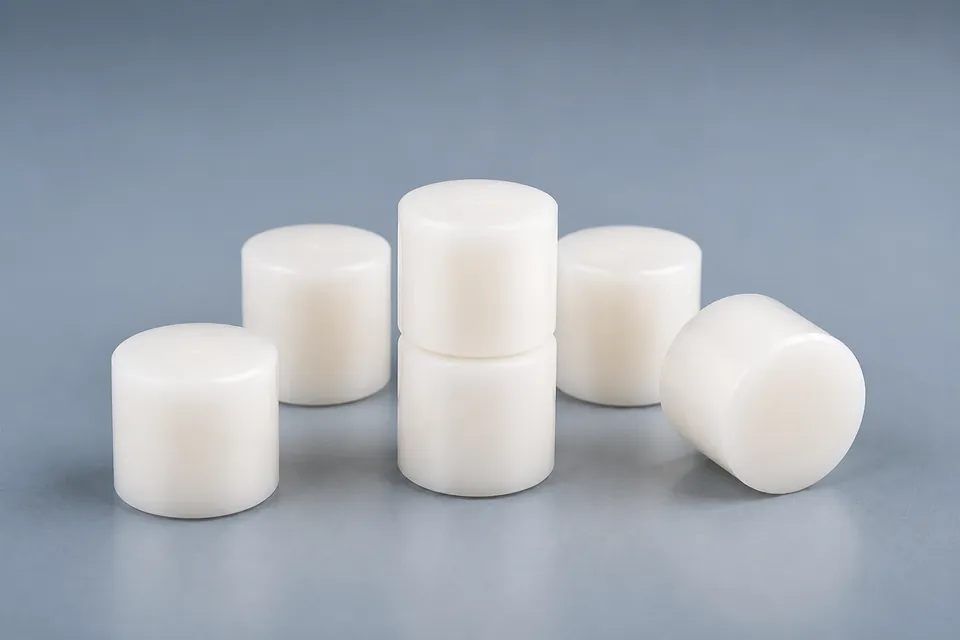

MODEL K-3205
43mm Polyolefin Hot Melt Glue Slugs for Edgebanding
Polyolefin hot melt adhesive / White
- Format
- 43 +/- 2mm x 43 +/- 2mm
- Application temperature
- 180-200 C
- Set-time reference
- 10-15 seconds
- Packing
- 20 kg/carton
43mm / 1.7-inch industrial format
43mm hot melt glue slugs, selected by the job.
Compare two documented product routes, then qualify the adhesive against your equipment, substrate and production conditions before scale-up.
2 documented routesPolyolefin and EVA
43mm equipment feedConfirm machine compatibility
Trial before scale-upNo universal-fit claim
43mmIndustrial glue-slug format
Evidence boundary
K-3205 and K-3801 specifications below come from their product records. Other application cards are qualification pathways, not proof that either model fits every process.
Current 43mm range
Start with chemistry and process fit.
Diameter gets the product into the right equipment. Chemistry, melt behaviour, substrate and production conditions decide which route deserves a trial.

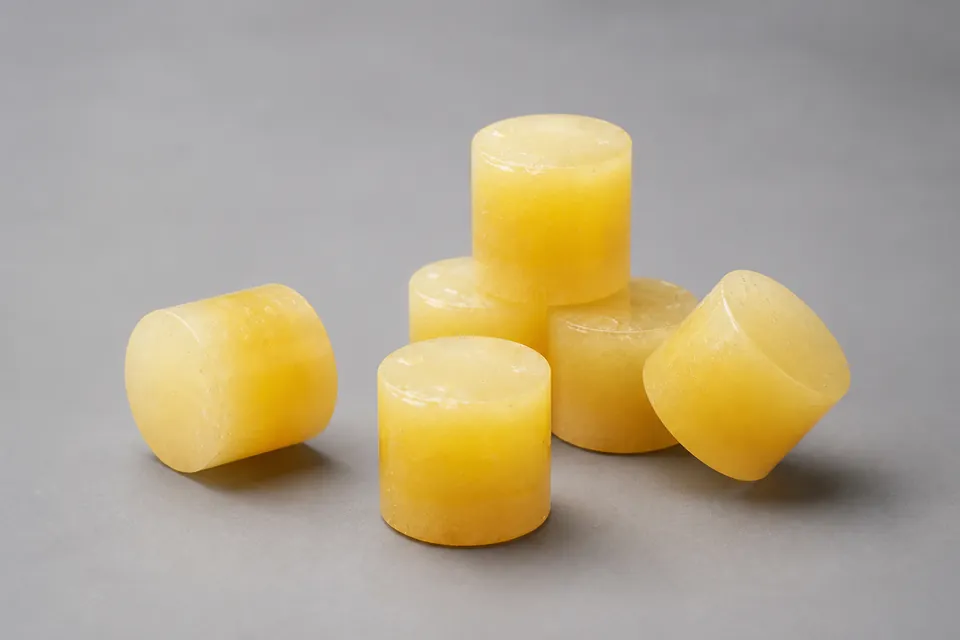

MODEL K-3801
43mm EVA Hot Melt Glue Slugs for Edgebanding
EVA-based synthetic resin hot melt adhesive / Yellow
- Format
- Nominal 43 +/- 2mm format
- Application temperature
- 180-200 C
- Set-time reference
- 8-10 seconds
- Packing
- 20 kg/carton
| Reference | K-3205 | K-3801 |
|---|---|---|
| Chemistry | Polyolefin hot melt adhesive | EVA-based synthetic resin hot melt adhesive |
| Softening point | 125 +/- 5 C | 85 +/- 5 C |
| Viscosity | 2,800 +/- 1,000 mPa.s at 180 C | 3,800 +/- 1,000 CPS at 170 C |
| Application temperature | 180-200 C | 180-200 C |
| Set-time reference | 10-15 seconds | 8-10 seconds |
Technical values are references, not guarantees. Confirm the latest TDS revision and approve performance in your own equipment and materials.
Application-led sourcing
Tell us the job before choosing the formulation.
We can review the following application routes. Only furniture edgebanding is the documented starting direction of the two products shown above.
Furniture edgebanding
The documented starting direction for both current 43mm product records. Machine and edge-material fit still requires a controlled trial.
Start an application reviewPackaging and carton closing
Application review available. Send carton coating, equipment, temperature and line-speed details before a formulation is proposed.
Start an application reviewProduct assembly
Application review available for equipment-fed assembly. Identify every substrate, surface treatment and bond requirement.
Start an application reviewWoodworking and panels
Application review available for boards, profiles and components. Share material, moisture and production conditions.
Start an application reviewBuilding materials
Application review available for board and component assembly. Heat exposure, load and service conditions must be defined.
Start an application reviewPlastics and difficult surfaces
Application review available. Provide the exact polymer, surface treatment and current failure mode for screening.
Start an application reviewQualification checklist
A useful inquiry starts with six facts.
These details help us avoid recommending a 43mm product based on diameter or colour alone.
- MachineBrand, model, feed format and melting system.
- MaterialsEvery substrate, coating and surface treatment.
- ProcessTemperature, line speed, pressure and coat weight.
- Current adhesiveReference, chemistry and current failure mode.
- RequirementBond appearance, service conditions and approval test.
- Commercial contextDestination and estimated monthly quantity.
Buyer FAQ
Answers that prevent a wrong 43mm sample.
Are all 43mm hot melt glue slugs interchangeable?
No. Diameter alone does not confirm chemistry, melt behaviour, feed compatibility or bond performance. Review the equipment and application before ordering.
Which product should I start with?
K-3205 is the documented polyolefin route and K-3801 is the documented EVA route. The sensible trial candidate depends on your machine, substrate, edge material and process window.
Can these products be used outside edgebanding?
Other applications can be reviewed, but this page does not claim that K-3205 or K-3801 is already suitable for every listed scenario. A formulation review and controlled trial are required.
What information should I send?
Send the machine brand and model, feed format, substrate, operating temperature, line speed, current adhesive, current problem, destination and estimated monthly quantity.
43mm application review
Send the machine and material details first.
We will compare your process with the current K-3205 and K-3801 records, then confirm whether one of them is a sensible trial candidate or whether another formulation should be reviewed.
